  • Full spec insulation
  • Elegant brick finish
  • Low cost
  • Zero maintenance
  • Fast install
  • Simple & fuss free
  • Energy saving
  • 25 year guarantee

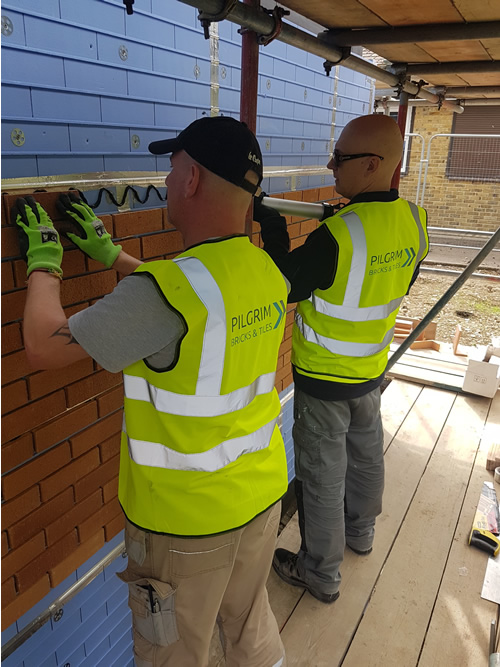

ThermClad is the insulated brick slip system that brings together insulation and a flawless brick exterior finish into one simple package. It is extremely quick and straightforward to install, requiring no specialist trade skills and comes in a wide range of thicknesses depending on the insulation requirement.

The ThermClad system can be used with the whole range of Pilgrim brick slips, from our handmade British Heritage style clay slips through to our modern machine slips with a variety of colours and face finishes. We even offer a range of double length slips for a striking and unusual architectural finish.

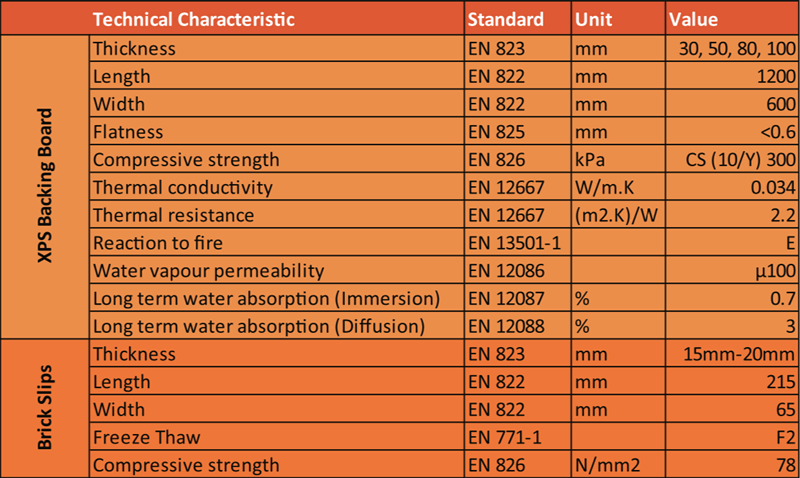

System Summary

Area of use

Modular and offsite construction
New build domestic (up to 18m height)
Commercial
Retrofit external wall insulation measure (EWI)

Insulation Type High density XPS foam board
Insulation Thickness 30mm - 100mm
Compatibility Existing masonry, timber frame, steel frame, modular
Approval CE
NHBC: Conforms to NHBC Standards 2016 Part 6 (Superstructure) chapter 6.9 (Curtain Walling & Cladding)
